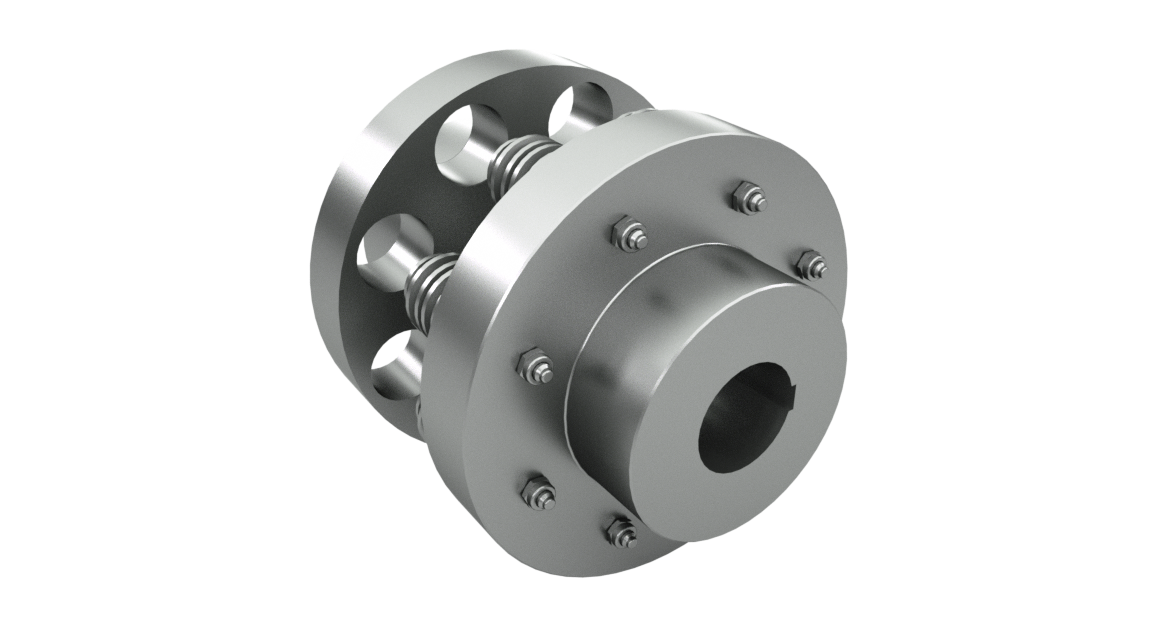

ELCO flexible couplings for effective damping of shocks and vibrations.

The torsionally resilient, flexible coupling is responsible for effectively dampening the shocks and vibrations that occur in drive systems during operation. Due to the special spring and damping properties of the profiled coupling sleeves, ELCO effectively limits torsional vibrations. The special design ensures the failsafe and consistent transmission of torque. In addition, it permits limited radial and angular misalignments of the shafts being connected and absorbs longitudinal displacements.
Due to the adaptability and high-quality design, RENK ELCO couplings have proven in tens of thousands of drives used in conventional energy production, in mining and hydropower, as well as in the oil, gas, and the petrochemical industry.
Take a look at our eShop where you will find couplings that give you the certainty that your systems will always operate reliably and stay up-to-date with the latest technology.
ELCO flexible couplings for effective damping of shocks and vibrations.
- Particularly good torsion spring and damping properties
- Reduction of torque and speed shocks
- Reduction of torsional vibrations
- Failsafe and consistent transmission of torque
- Compensation of radial and angular misalignments
- Compensation of longitudinal displacements
- Easy axial removal of the profile sleeves and bolts
ELCO flexible couplings for effective damping of shocks and vibrations.
Shaft diameter: | 10 to 500 mm |
Coupling torque: | 18 to 540,000 Nm |
Construction: | Standard construction with Single-side or alternating-side transmission elements, special construction |
Coupling material: | Steel or special material |
Sleeve material: | Modified natural rubber, chloroprene polymerizate or nitrile rubber |
